Unloading trucks and containers
Gravity roller conveyors
In logistics and warehousing, optimising de-roupage operations to improve efficiency and reducing operator fatigue remain fundamentally important. Mancini Solutions has developed innovative and cost-effective solutions designed to make unloading easier, reduce transfer time and guarantee better safety and work ergonomics.
These are our solutions for unloading goods, designed for use in every situation:

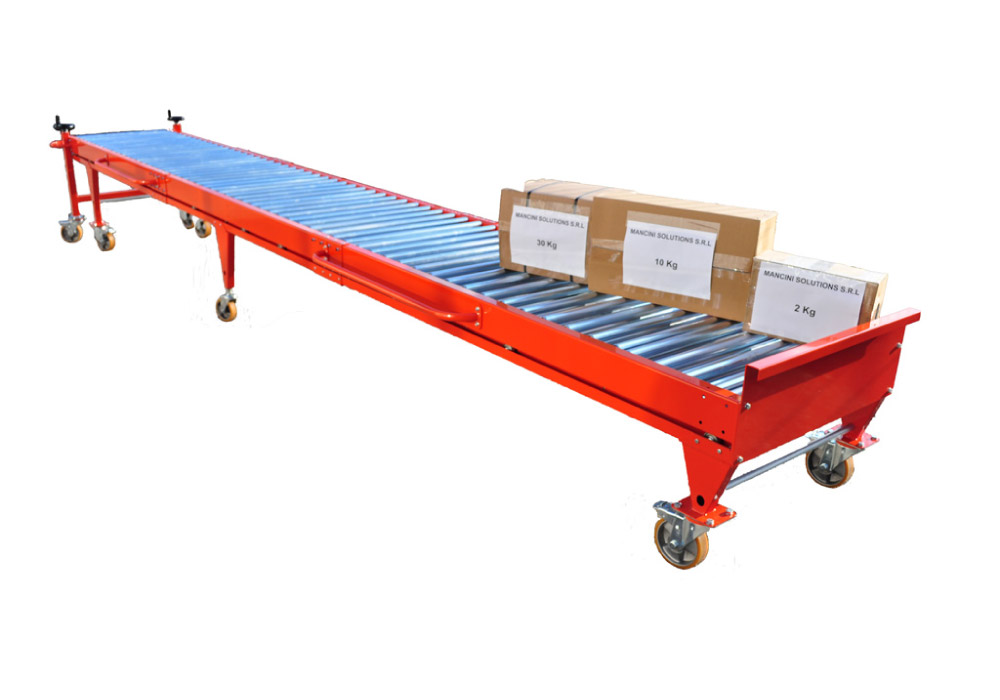

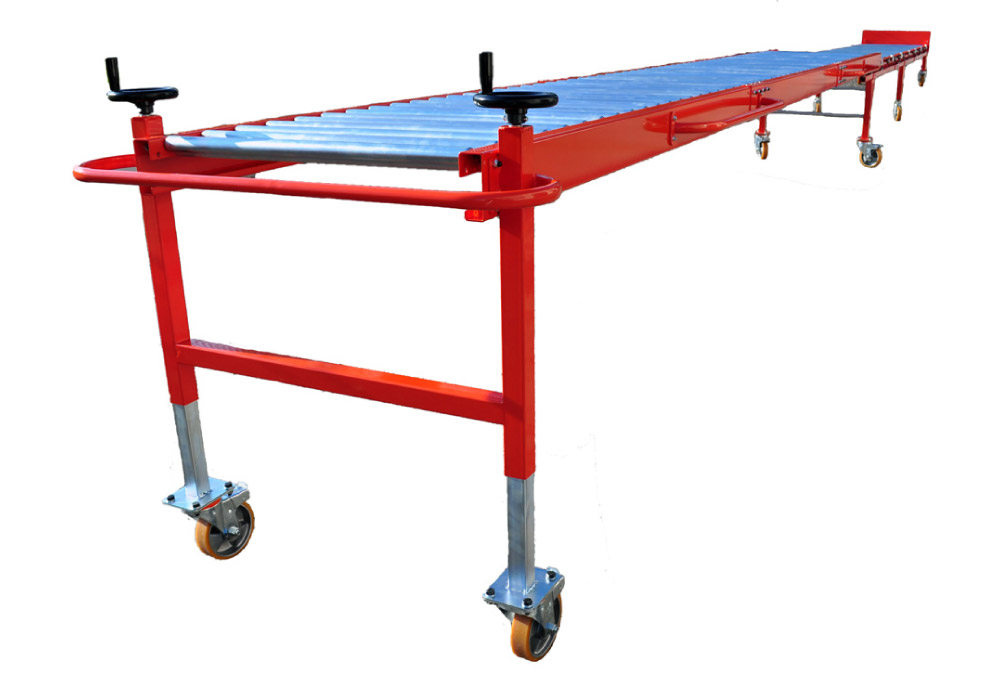

Telescopic linear roller conveyor “RLT” series
From 6 to 11 metres in an instant. Simple, practical and economical, this telescopic roller conveyor is ideal to make unloading goods at a loading dock easier, reduce physical exertion and optimise transfer time.

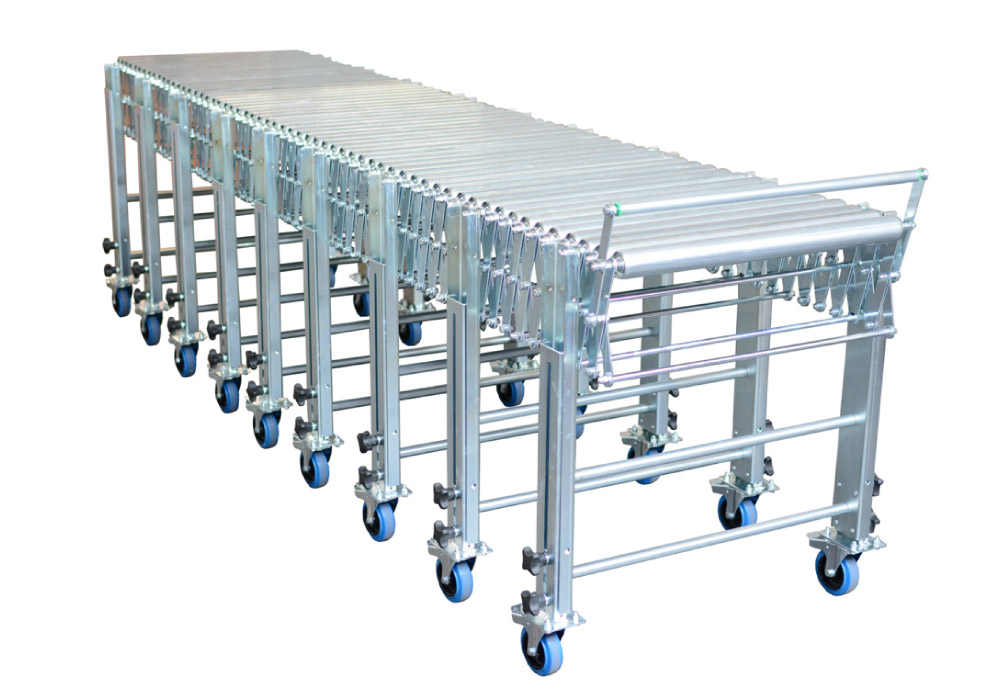

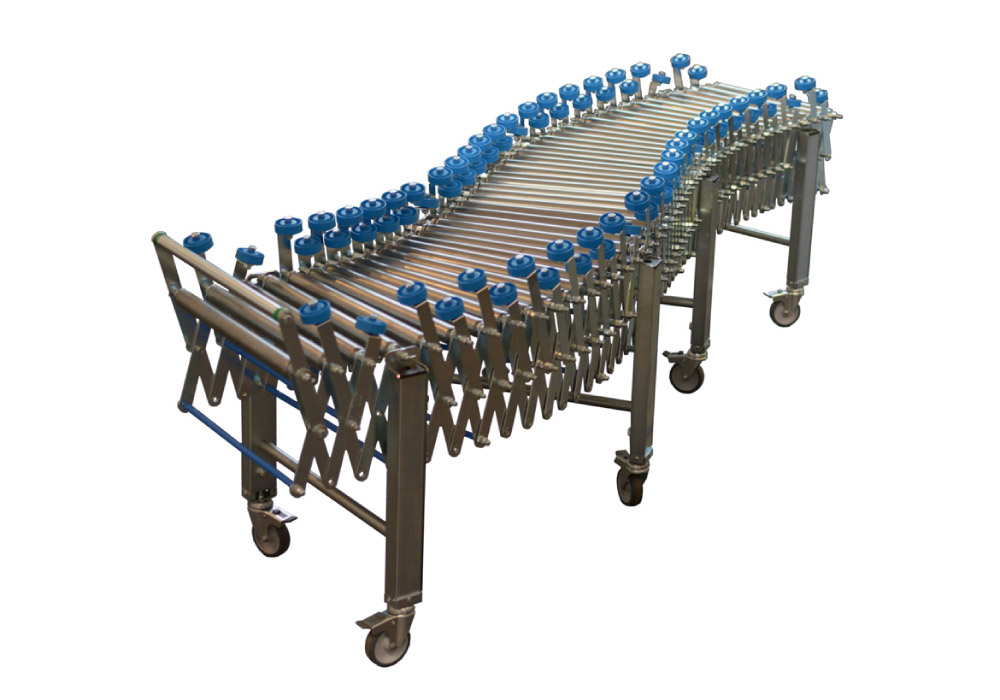

Extendable roller conveyors “Unload TIR”
Flexible and tough. Designed for unloading HGVs quickly, these conveyors are built with sturdy material, resistant to use and able to bear intense loading. Thanks to their modularity and straightforward use, they are perfect for warehouses with high volumes of goods.
Gravity roller conveyors for yard unloading
When there is no dock leveller, this is the best solution for unloading cargo directly in a yard with no specific infrastructure. Ideal when used in combination with “SCARICO TIR” extendable roller conveyors, for continual flow of movement.
Types
- Telescopic linear roller conveyors
- Extendable roller conveyors “SCARICO TIR”
- Gravity roller conveyors for yard unloading
Caratteristiche
“RLT” series of telescopic linear roller conveyors
- Box-stopper plate
- Side and front handles
- Flaps for the inclined upper telescopic section;
- Robust wheels with brake Ø 150 MM
- Anti-slip safety block
- Usable width 700 mm
- Closed length 6 mt
- Extended length 11 mt
- Suitable for boxes up to 30 kg
“Unload TIR” extendable roller conveyors
- Heavy duty supports
- Extra-strengthening tie-rods and bolts
- Zinc-coated steel rollers Ø 50 mm
- Sturdy wheels with brakes Ø100mm
- Usable width 600/800 mm
- Closed length 1.65 / 2.3 / 3 mt
- Extended length 3.9 / 5.9 / 7.6 mt
- Suitable for boxes up to 30 kg
Gravity roller conveyors for yard unloading
Heavy duty supports
Extra-strengthening tie-rods, diagonals and bolts
Zinc-coated steel rollers Ø 32 / 50 m
Sturdy wheels with brakes Ø 100 mm
Usable width 600 / 700 / 800 mm
Speed reducer (limits the downhill speed of goods in movement)
Length according to requirements
Height according to requirements
Suitable for boxes up to 30 kg
Areas of use
- Food and Beverage
- Pharmaceuticals
- Manufacturing industries
- Restaurants
- Packaging
- Automations
- Robotics
- Automotive
Accessories
- Rubber rollers with coating suited to the type of transport
- Connection plates and accessory mounting
- Adjustable or fixed guides
- Box stopper
- Stop bar
Options and customizations
