Extendable
Gravity roller conveyors
The extendible roller conveyors are the ideal solution for fast, safe product movement in a wide range of industrial contexts.
Thanks to maximum flexibility in length, height and curvature, they adapt perfectly to a variety of operational demands, reducing time and effort as well as optimising available space.
Advantages of using extendable roller conveyors
- Total flexibility: they extend and bend according to the demands of the production line.
- Efficiency and saving: they speed up movement and reduce manual work.
- Sturdy structure: built in zinc-coated steel they guarantee durability and wear-resistence.
- Optimal use of space: their compact design and scissor system allow neat storage when not in use.
Where to use extendable roller conveyors
Our rollers are used in a variety of industrial environments, which include:

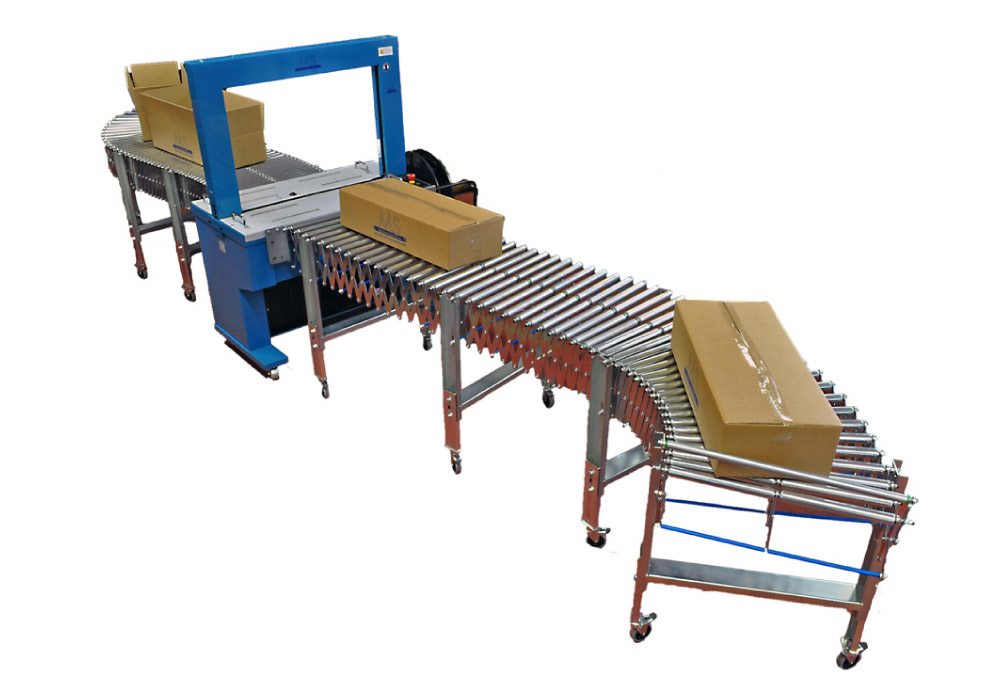

- Packaging lines and EOL for a more fluid work process.
- Ideal for loading and unloading goods from trucks and containers.
- In assembly and packaging stations facilitating movement and improving work ergonomics.
Why choose extendable roller conveyors
The roller conveyors are entirely produced in our factory with high quality materials and careful attention to detail. Thanks to the scissor system, they can be customised according to each company’s requirements thus guaranteeing maximum flexibility and practicality.
Types

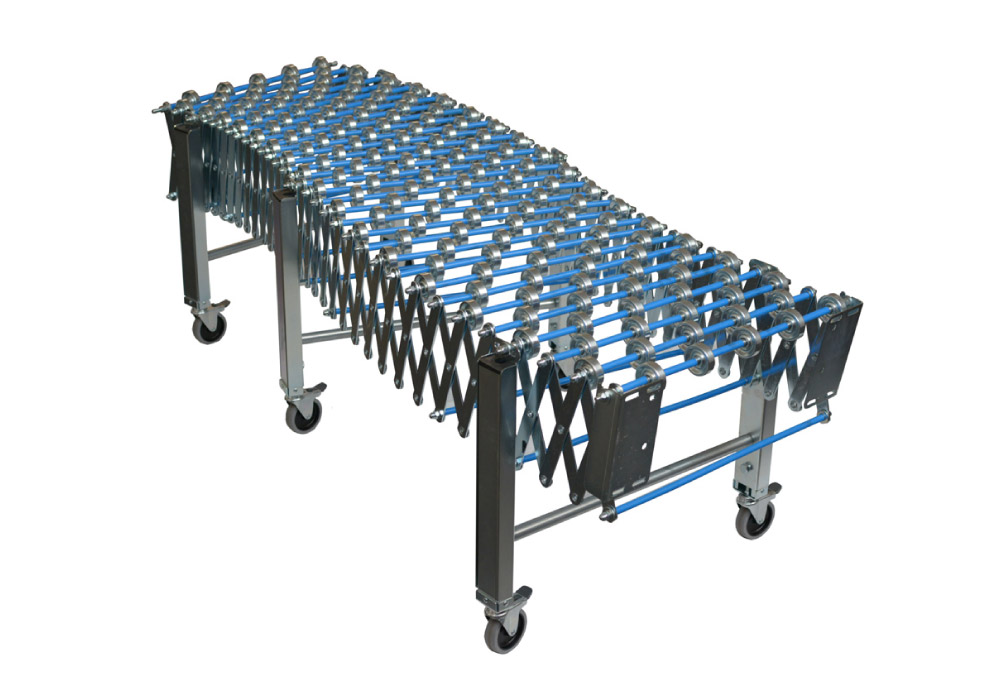

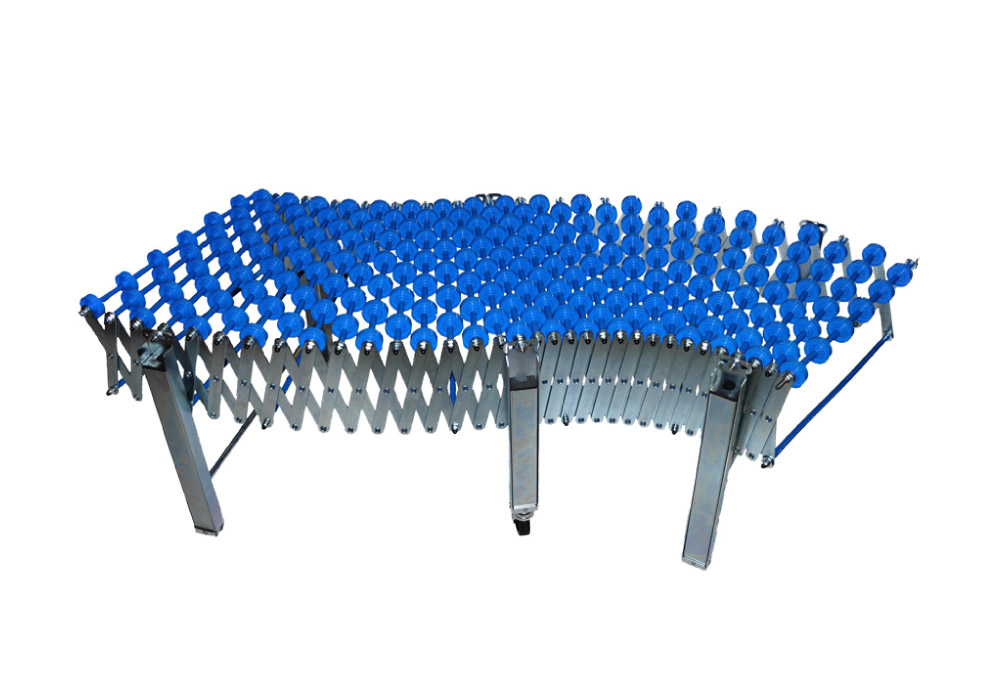

- A wide range of extendable roller conveyors with plastic or zinc-coated wheels
- A wide range of extendable roller conveyors with single or double zinc-coated rollers
- Custom-built non-standard measurements

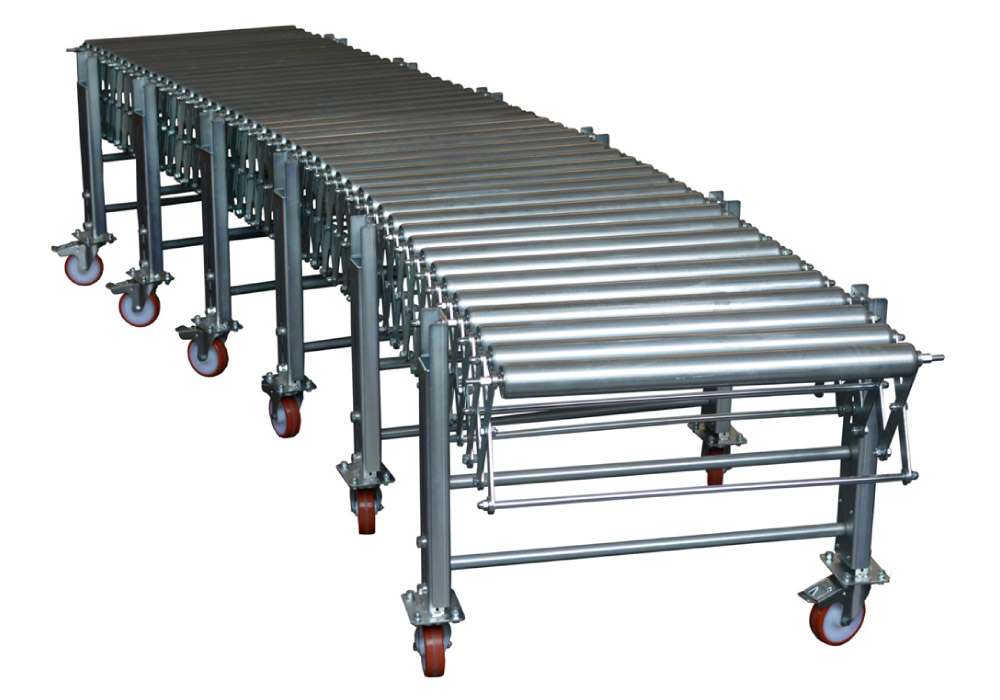

- Strengthened roller conveyors for logistics and container unloading

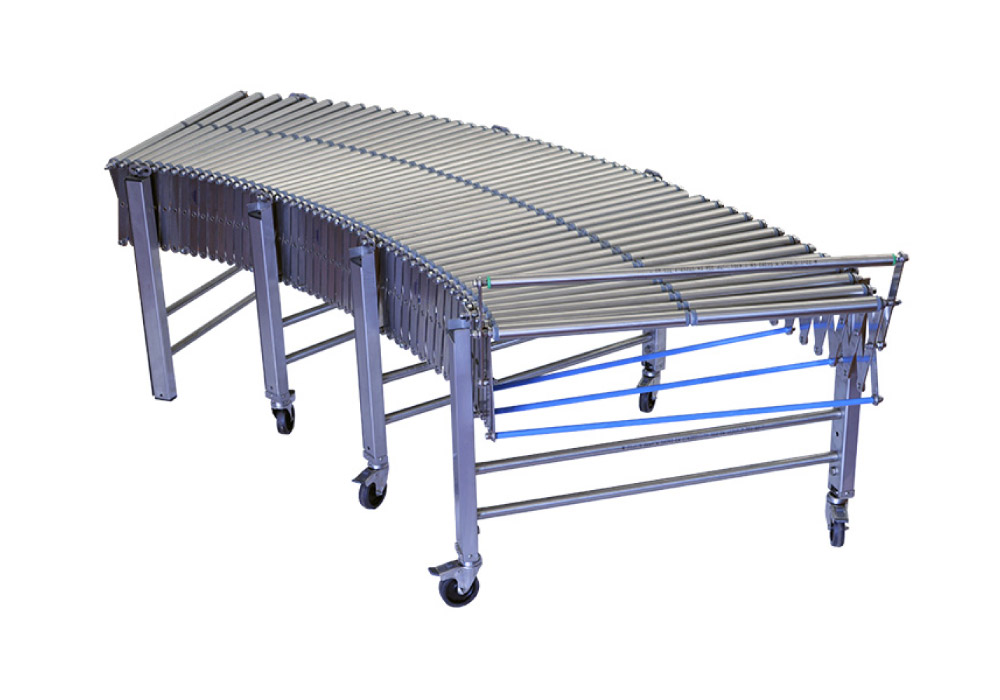

- Stainless steel extendable roller conveyors for the food and beverage, pharmaceutical and chemical sectors
- Standard motorised extendable roller conveyors

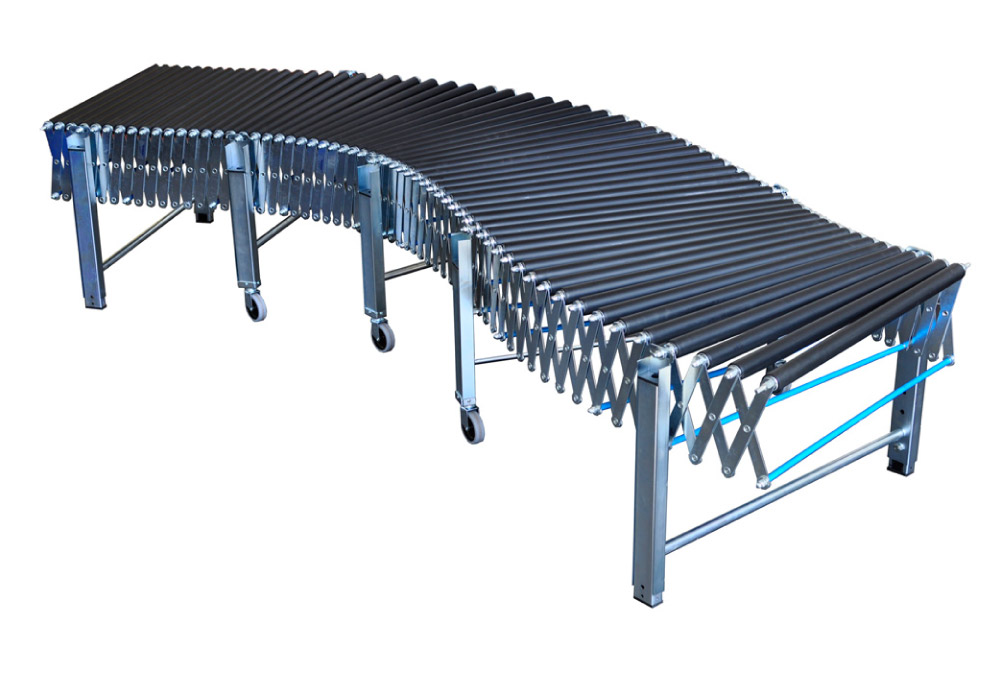

- Extendable roller conveyors with rubber-coated rollers
- Extendable roller conveyors with rubber-coated wheels
- Special versions according to requirements
Characteristics
- 3mm zinc-coated steel scissor structure
- U-section support in 2mm zinc-coated steel
- Load-bearing axes Ø 8mm in 8.8 steel
- Sturdy wheels with brakes Ø 80 mm
- Standard widths 400 / 500 / 600 / 700 mm
- Standard widths 1000-3900/ 1500-5900 / 2000-7600 mm
- Standard heights 550-860 / 650-1060 / 750-1260 mm
Areas of use
- Food and Beverage
- Pharmaceuticals
- Manufacturing industries
- Restaurants
- Packaging
- Automations
- Robotics
- Automotive
Accessories
- Connector plates to the machine
- Connector plates between modules
- Fixed or fold-away box stopper
- Rubber-coated rollers in soft PVC
- Rubber-coated wheels in soft PVC
- Independent side guards
Options and customizations
